8 x JANBACHER

We have following natural gas plant available :

1 complete JENBACHER NATURAL GAS POWERPLANT of 21,6 Mwe

-YOM end 1998

-Commissioning: 5 units in 2000 , 1 unit in 2009 , 1 unit in 2010 and 1 unit in 2011

-8 units JENBACHER JMS 620 G of 2,7 Mwe-total effective electric output : 21,7 Mw

-Running hours : 5 units between 38000 and 40000 hours  ,

2 units 6200 hours and 1 unit : 7200 hours

-JENBACHER maintenance  -full maintenance history

SCOPE OF SUPPLY:

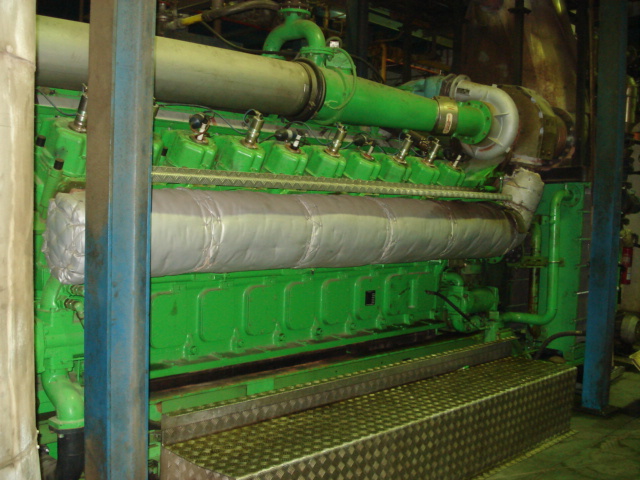

-8X JENBACHER J 620 G3 natural gas sets coupled to a double bearing LEROY-SOMER alternator 690/400 volts-50 Hz

-8X stainless steel exhaust muffler

-8X stainless steel exhaust gas heat recovery muffler

-8X jacket water and intercooler heat recovery system (plate cooler)

-8X lube oil heat recovery system (plate cooler)

-2X waste heat recovery boilers

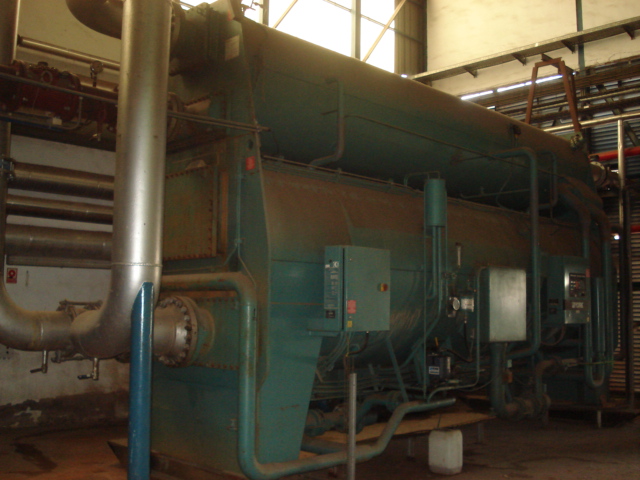

-1X York millennium absorption chiller

-4X table coolers

-8X water circulating pumps

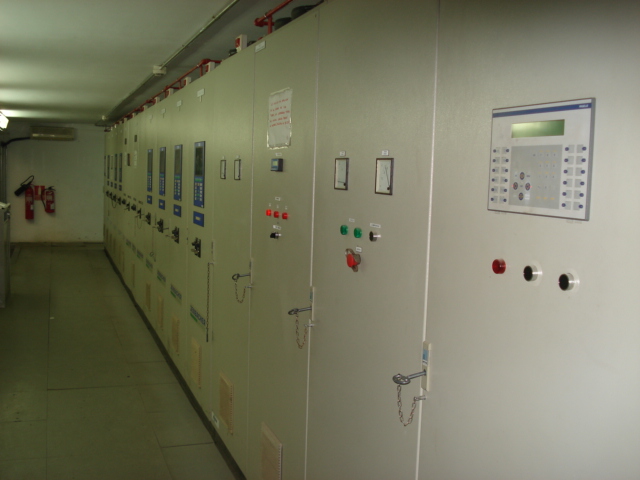

-Complete JENBACHER control panel existing if 8 individual engine monitoring systems (LT)

-complete HT control panel with 8X Merlin-Gérin circuit-breakers

Price loaded in containers ex-works: 1.100.000 €
