MWM TCG2032 V16 Natural Gas Combined Cycle Power Plant

 38.845 MW MWM TCG2032 V16 Natural Gas Combined Cycle Power Plant. Commissioning began in November 2012 at the production facility. The MWM power plant has been meticulously maintained by OEM since installation with detailed service records on site.

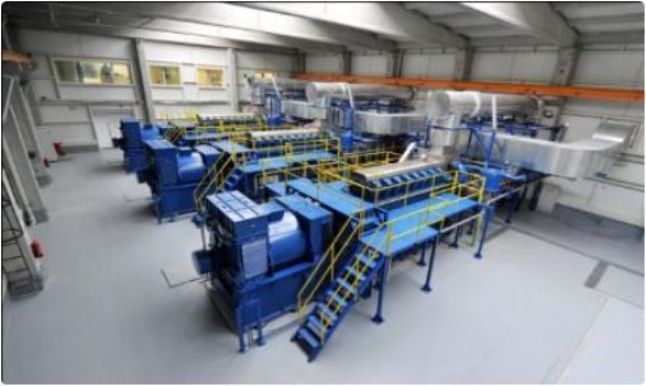

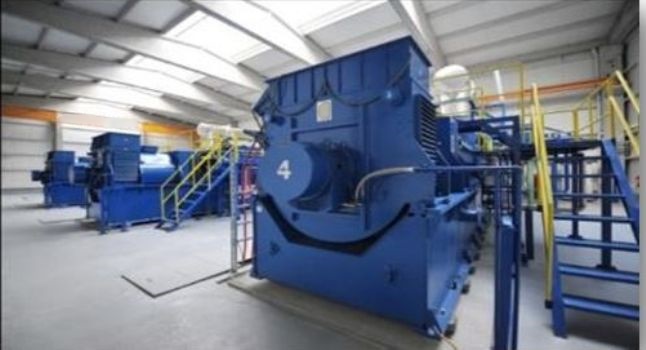

The power plant consists of eight (8) 4300 KW MWM 2032V16 Natural Gas Engines; each coupled to AVK Alternators for a total output of 34.4 MW. The natural gas generator sets operate at 1000 rpm, 11 KV, 50 HZ frequency. Year of manufacture: 2012 & 2014. Hours of operation since new: 7,000 to 12,000 hours. The steam turbine generator produces 4.445 KW of electrical power with steam pressure of 18 bar at 352°C. steam temperature.

The steam turbine condensor has a design pressure of 0.08 bar and themal power output of 4988 KW. The waste heat recovery boiler is a superheated steam boiler with water pipes that have a heat capacity of 2290 kWth. The plant is cooled by a reverse flow cooling tower system. This very well maintained plant can be inspected by a prearranged scheduled visit.
